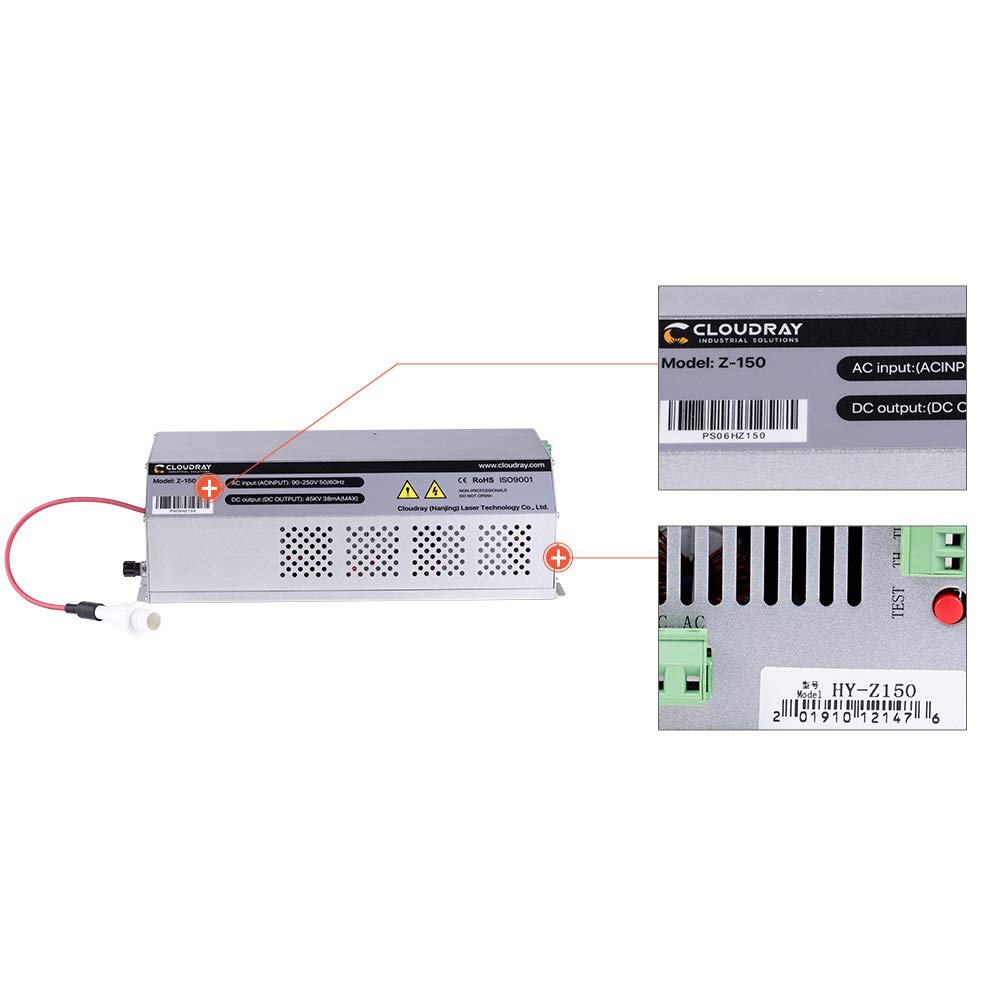

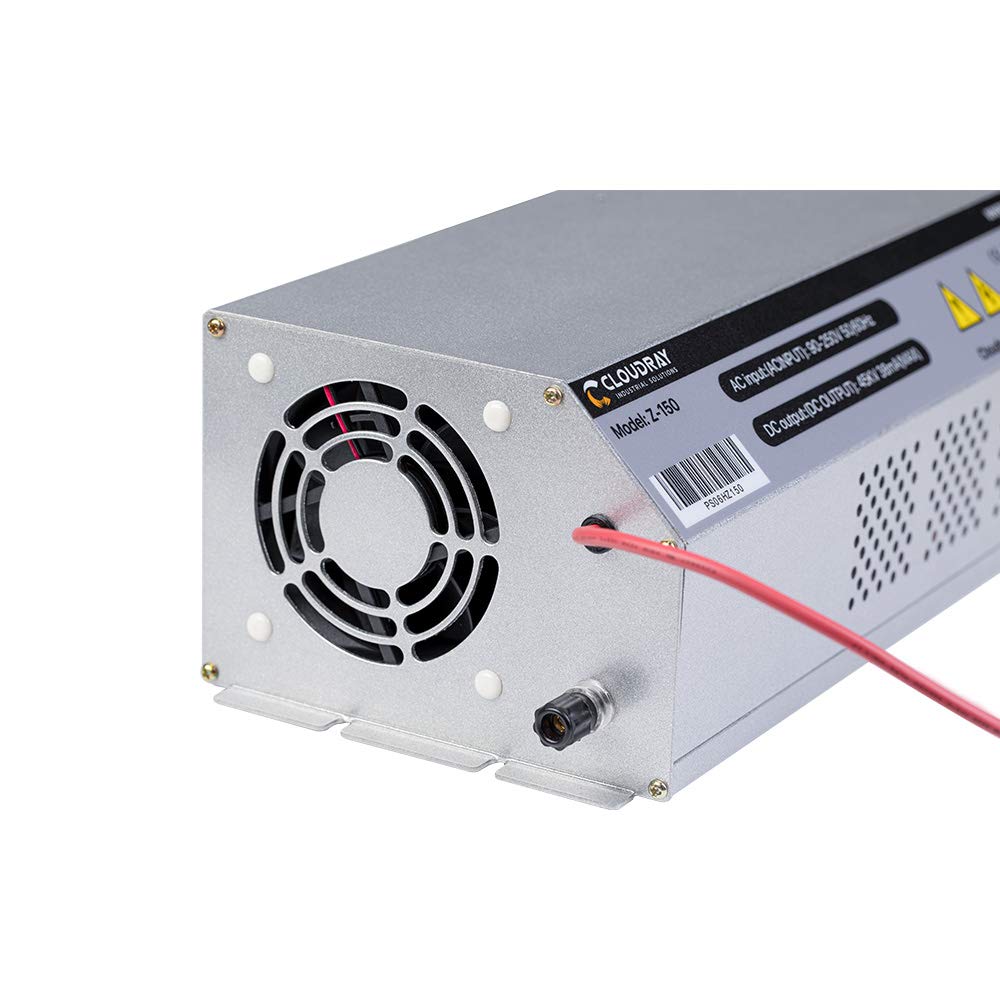

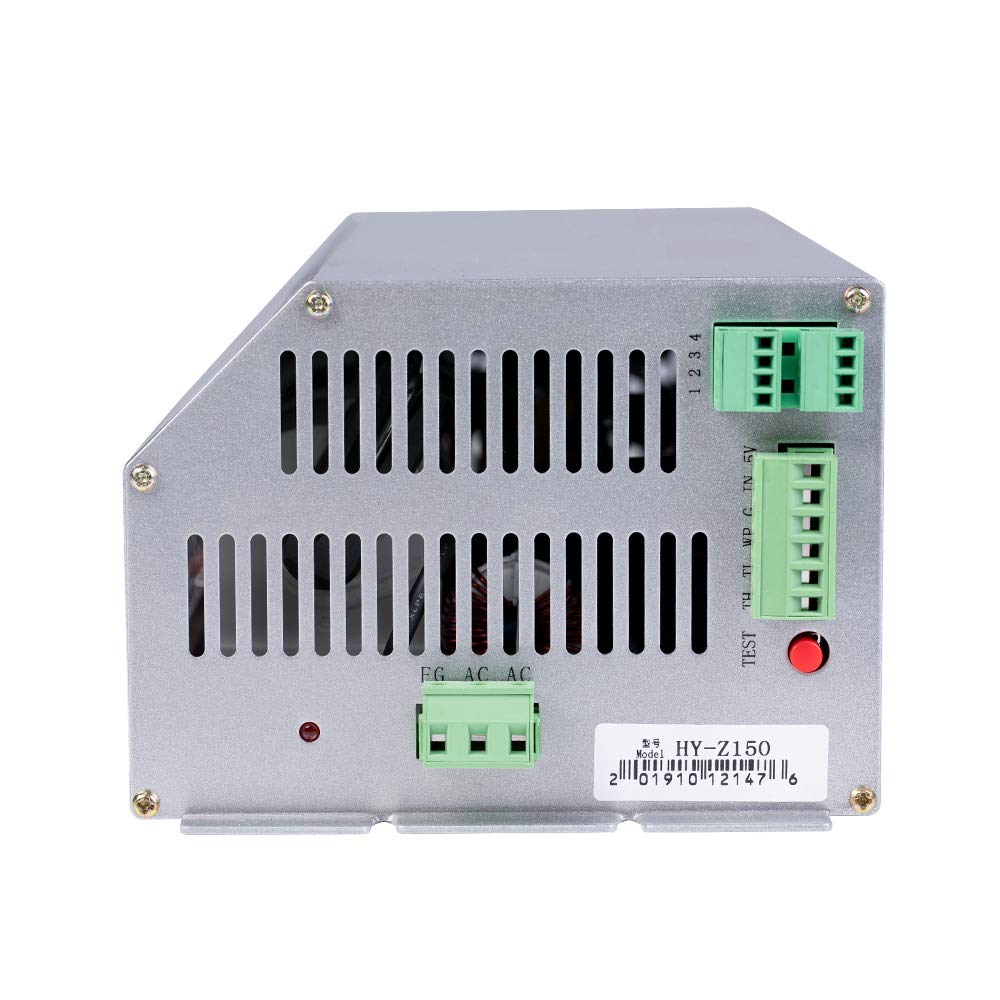

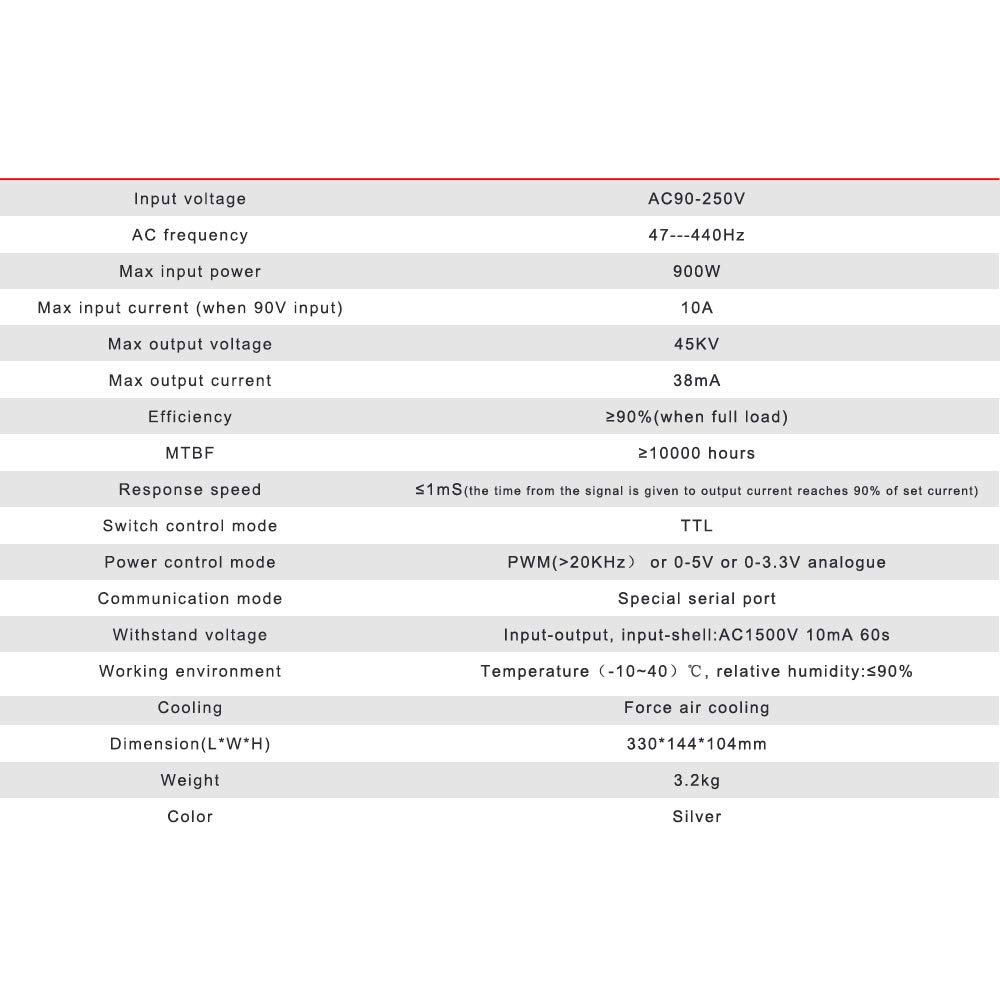

Advantages: More safety: With high voltage discharge function No residual voltage when turning off, safer for user. Excellent cover with patent design: Good appearance, better heat dissipation Improved current control mode, more stable opration ,better compatibility Basic parameters Power: 150-180WInput Voltage : AC 90-250VMax Input Current : 10A (when 90V input)For 150W Laser Tube Features: Mode: HY-Z150 High intelligence: Built-in control, can communicate with motion controller,and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.Make the maintenance much easier: User can judge the problem by himself. Universal: With PFC function, AC90-250V input voltage range, globally universal. Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.Open circuit protection: prevent high voltage arc effectively. Technical Parameter (HY-150) Input Voltage AC 90-250V AC Frequency 47-440Hz Max Input power 900W Max Input Current 10A (when 90V input) Max output voltage 45kv Max output current 38mA Efficiency >=90% （when full load) MTBF >=10000 hours Response Speed 20KHz) or 0-5V or 0-3.3v analogue Communication mode Special serial port Withstand voltage Input-Output ,input-shell: AC1500V 10mA 60s Working environment Temperature (-10~40)℃ ，relative humidity :<=90% Cooling Force air cooling Dimension(L*W*H) 330*144*104mm Product Size Wiring Diagram Connection Method Of P5 Terminal P5_A connect with the second PSUP5_B connect with Ruida controller or LCDP4 and P2 are the terminals same as normal Power Supply If P5 terminals connect with Ruida 6442G controller If there is only one PSU need to connect with one control board (like RT6224G)Please connect with RT6224G's RT-linkJust like the methed shows in picture in the right side.P5_A can be empty if there is only one PSU. Diagram of Conntroller If there are more than two PSU ,P5_A of the 1st PSU connect with P5_B terminals of the 2nd PSU.The left terminals (P5_A) of the last PSU can be empty,No need to connect anything. If there is only one PSU ,connect P5_B terminals with the LCD directly If there are more than 2 PSU ,connct P5_B terminals of the first PSU with LCD, connect P5_A terminals of the first PSU with P5_B terminals of the 2nd PSU.Wires between terminals, it iis recommend to use 4 wire in one,and the wire diameter must be more than 0.5mm. Connection Method Of P4 Teminal Notes P3 is a test button. If output current approach or above 50% of the rated current when the button is pressed .It indicates that the PSU is OKKK.P2 is the terminal of AC input,110V AC or 220V ACP1 Do not operate this terminal.
